Classic v-belt inquiry

šifra artikla:

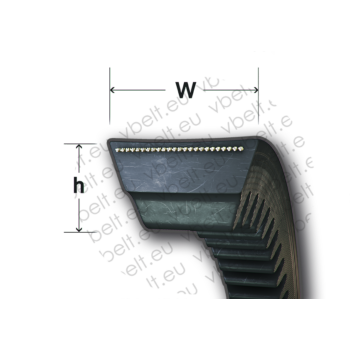

Classic type of StarkLine® v-belts are produced as cogged belt for the better action on pulley. This cogged version provides better power transmission and allows for smaller pulleys. StarkLine® belts meet all relevant international standards: DIN 2215, BS3- 790, ISO4184.

Technical description:

section	section size	length range	MDP**	La	Lp*
ZX	10x6 mm	700-40000 mm	40 mm	Li+38	Li+22
AX	13x8 mm	700-40000 mm	63 mm	Li+50	Li+30
BX	17x10 mm	700-40000 mm	90 mm	Li+69	Li+40
CX	22x14 mm	1000-40000 mm	140 mm	Li+88	Li+58
25X	25x16 mm	1000-40000 mm	180 mm	Li+100	Li+61
DX	32x19 mm	1500-40000 mm	280 mm	Li+126	Li+75
EX	40x25 mm	1500-40000 mm	400 mm	Li+157	Li+80
20 (non-cogged)	20x12mm	1000-40000 mm	160 mm	Li+79	Li+48

* Lp = Ld = Lw; **MPD = Minimum Pulley Diameter

If you would like to order StarkLine® v-belts with unique length please fill the inquiry form below.

raspoloživost:

Pre-order

Trošak/Cijena dostave:

Ne mogu se prevoziti.

Očekivana isporuka:

29. Travanj 2025.

Dodati u moju listu želja
